Enamel Ovens

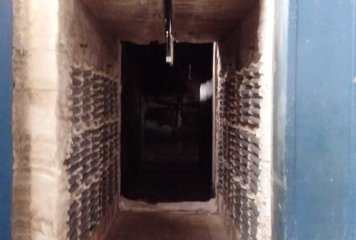

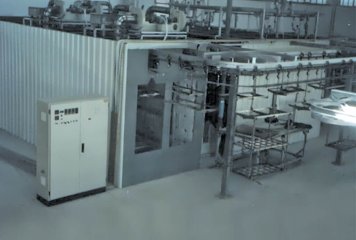

ALEV ENDÜSTRİYEL MAKİNE is based on the principle that the workpiece to be baked in Tunnel Type Enamel Cooking Ovens is hung at the oven conveyor and cooked at 850 fırınC. These types of furnaces are internally rotating furnaces, after the workpiece is hung on the conveyor, it is provided to be cooked or dried while traveling at a certain speed depending on the thickness and m2 area of ​​the part.

Tunnel Type Enamel Cooking and Drying Ovens are specially designed with our expert engineering staff. Our Tunnel Type Enamel Cooking and Drying Ovens are also manufactured as assembled. Thanks to this feature, it can be easily mounted and moved to other areas if desired.

In the industry, it is preferred by the companies with high capacity production.



HEATING UNIT

ALEV INDUSTRIAL MACHINE heating coils are designed on the basis of maximum efficiency, minimum fuel consumption. Thanks to the specially designed heating coil made of specially imported inkonel 601 or 310S cr cr material mounted on the interior of the furnace, the furnace heat is increased from ambient temperature to +850 ºC. The furnace is PLC controlled. The number of PROCESS BEGs used varies according to the oven size and kg.



TECHNICAL SPECIFICATIONS OF TUNNEL TYPE COOKING FURNACES

ALEV INDUSTRIAL MACHINE Tunnel Type Enamel Cooking Ovens are installed on the chassis and manufactured in assembled form. The part that comes to the interior of the furnace is made of 1260 ˚C durable 300mm Ceramic Wool, 50mm Rock Wool material.

Oven outer hair is coated with electrostatic powder paint and corrosion resistance is increased. Baking oven panels are isolated with 350mm insulation material as standard. Due to this insulation feature in the enamel oven, the heat losses do not exceed the ambient temperature (± 20) degrees. In this way, our cooking ovens consume less fuel and do not heat the working environment more than necessary. There are air curtain fans specially designed at the entrance of the furnace, thus saving unnecessary heat losses is prevented.

Temperature control is done by the Thermocouple placed inside the oven. ALEV INDUSTRIAL MACHINE Tunnel Type Enamel Baking Ovens automatically signal when it reaches the desired temperature and can be adjusted up to 0-850 ° C by digital clock on the temperature control panel.

Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
Enamel Ovens
